2D Shapes Datasets

import pandas as pd
import time
import os.path

import warnings
warnings.filterwarnings('ignore')

# install DenMune clustering algorithm using pip command from the offecial Python repository, PyPi
# from https://pypi.org/project/denmune/
!pip install denmune

# then import it
from denmune import DenMune

# clone datasets from our repository datasets
if not os.path.exists('datasets'):
  !git clone https://github.com/egy1st/datasets

::: {.parsed-literal} Cloning into \'datasets\'... remote: Enumerating objects: 52, done. remote: Counting objects: 100% (52/52), done. remote: Compressing objects: 100% (43/43), done. remote: Total 52 (delta 8), reused 49 (delta 8), pack-reused 0 Unpacking objects: 100% (52/52), done. Checking out files: 100% (20/20), done. :::

data_path = 'datasets/denmune/shapes/'
datasets = {"aggregation": 6, "jain": 15, "flame": 8, "compound": 13, "varydensity": 23,
            "unbalance": 8, "spiral": 6, "pathbased": 6, "mouse": 11}

for dataset in datasets:


  data_file = data_path + dataset + '.csv'
  X_train = pd.read_csv(data_file, sep=',', header=None)
  y_train = X_train.iloc[:, -1]
  X_train = X_train.drop(X_train.columns[-1], axis=1)

  print ("Dataset:", dataset)
  dm = DenMune(train_data=X_train,
              train_truth=y_train,
              k_nearest=datasets[dataset],
              rgn_tsne=False)

  labels, validity = dm.fit_predict(show_noise=True, show_analyzer=True)

::: {.parsed-literal} Dataset: aggregation Plotting dataset Groundtruth :::


::: {.parsed-literal} Plotting train data :::


::: {.parsed-literal} Validating train data ├── exec_time │ ├── DenMune: 0.17 │ ├── NGT: 0.016 │ └── t_SNE: 0 ├── n_clusters │ ├── actual: 7 │ └── detected: 7 ├── n_points │ ├── dim: 2 │ ├── noise │ │ ├── type-1: 0 │ │ └── type-2: 0 │ ├── plot_size: 788 │ ├── size: 788 │ ├── strong: 492 │ └── weak │ ├── all: 296 │ ├── failed to merge: 0 │ └── succeeded to merge: 296 └── validity └── train ├── ACC: 785 ├── AMI: 0.988 ├── ARI: 0.993 ├── F1: 0.996 ├── NMI: 0.988 ├── completeness: 0.987 └── homogeneity: 0.989

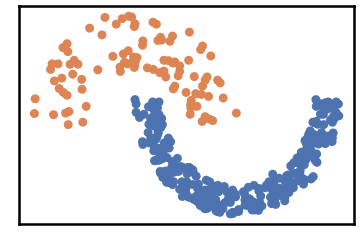

Dataset: jain Plotting dataset Groundtruth :::


::: {.parsed-literal} Plotting train data :::


::: {.parsed-literal} Validating train data ├── exec_time │ ├── DenMune: 0.097 │ ├── NGT: 0.01 │ └── t_SNE: 0 ├── n_clusters │ ├── actual: 2 │ └── detected: 2 ├── n_points │ ├── dim: 2 │ ├── noise │ │ ├── type-1: 0 │ │ └── type-2: 0 │ ├── plot_size: 373 │ ├── size: 373 │ ├── strong: 198 │ └── weak │ ├── all: 175 │ ├── failed to merge: 0 │ └── succeeded to merge: 175 └── validity └── train ├── ACC: 373 ├── AMI: 1.0 ├── ARI: 1.0 ├── F1: 1.0 ├── NMI: 1.0 ├── completeness: 1.0 └── homogeneity: 1.0

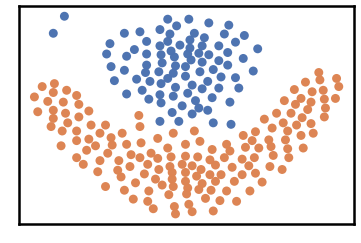

Dataset: flame Plotting dataset Groundtruth :::


::: {.parsed-literal} Plotting train data :::


::: {.parsed-literal} Validating train data ├── exec_time │ ├── DenMune: 0.059 │ ├── NGT: 0.01 │ └── t_SNE: 0 ├── n_clusters │ ├── actual: 2 │ └── detected: 2 ├── n_points │ ├── dim: 2 │ ├── noise │ │ ├── type-1: 0 │ │ └── type-2: 0 │ ├── plot_size: 240 │ ├── size: 240 │ ├── strong: 150 │ └── weak │ ├── all: 90 │ ├── failed to merge: 0 │ └── succeeded to merge: 90 └── validity └── train ├── ACC: 240 ├── AMI: 1.0 ├── ARI: 1.0 ├── F1: 1.0 ├── NMI: 1.0 ├── completeness: 1.0 └── homogeneity: 1.0

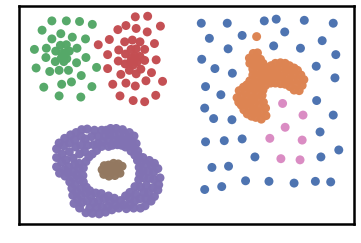

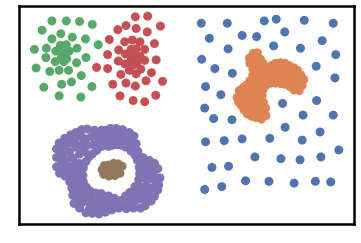

Dataset: compound Plotting dataset Groundtruth :::


::: {.parsed-literal} Plotting train data :::


::: {.parsed-literal} Validating train data ├── exec_time │ ├── DenMune: 0.077 │ ├── NGT: 0.013 │ └── t_SNE: 0 ├── n_clusters │ ├── actual: 6 │ └── detected: 7 ├── n_points │ ├── dim: 2 │ ├── noise │ │ ├── type-1: 0 │ │ └── type-2: 0 │ ├── plot_size: 399 │ ├── size: 399 │ ├── strong: 218 │ └── weak │ ├── all: 181 │ ├── failed to merge: 0 │ └── succeeded to merge: 181 └── validity └── train ├── ACC: 389 ├── AMI: 0.96 ├── ARI: 0.98 ├── F1: 0.983 ├── NMI: 0.961 ├── completeness: 0.947 └── homogeneity: 0.976

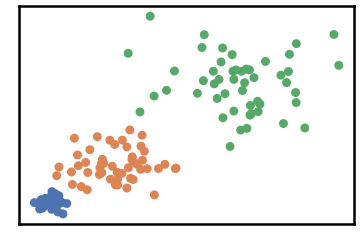

Dataset: varydensity Plotting dataset Groundtruth :::


::: {.parsed-literal} Plotting train data :::


::: {.parsed-literal} Validating train data ├── exec_time │ ├── DenMune: 0.035 │ ├── NGT: 0.004 │ └── t_SNE: 0 ├── n_clusters │ ├── actual: 3 │ └── detected: 3 ├── n_points │ ├── dim: 2 │ ├── noise │ │ ├── type-1: 0 │ │ └── type-2: 0 │ ├── plot_size: 150 │ ├── size: 150 │ ├── strong: 76 │ └── weak │ ├── all: 74 │ ├── failed to merge: 0 │ └── succeeded to merge: 74 └── validity └── train ├── ACC: 150 ├── AMI: 1.0 ├── ARI: 1.0 ├── F1: 1.0 ├── NMI: 1.0 ├── completeness: 1.0 └── homogeneity: 1.0

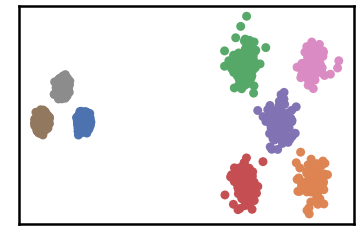

Dataset: unbalance Plotting dataset Groundtruth :::

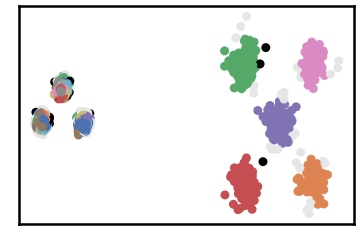

::: {.parsed-literal} Plotting train data :::


::: {.parsed-literal} Validating train data ├── exec_time │ ├── DenMune: 1.028 │ ├── NGT: 0.123 │ └── t_SNE: 0 ├── n_clusters │ ├── actual: 8 │ └── detected: 91 ├── n_points │ ├── dim: 2 │ ├── noise │ │ ├── type-1: 21 │ │ └── type-2: 127 │ ├── plot_size: 6500 │ ├── size: 6500 │ ├── strong: 3910 │ └── weak │ ├── all: 2590 │ ├── failed to merge: 127 │ └── succeeded to merge: 2463 └── validity └── train ├── ACC: 2562 ├── AMI: 0.534 ├── ARI: 0.272 ├── F1: 0.519 ├── NMI: 0.542 ├── completeness: 0.376 └── homogeneity: 0.974

Dataset: spiral Plotting dataset Groundtruth :::

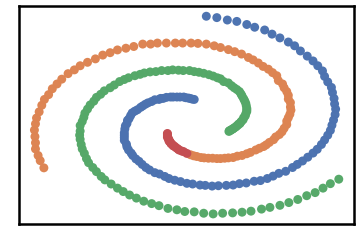

::: {.parsed-literal} Plotting train data :::


::: {.parsed-literal} Validating train data ├── exec_time │ ├── DenMune: 0.036 │ ├── NGT: 0.003 │ └── t_SNE: 0 ├── n_clusters │ ├── actual: 3 │ └── detected: 4 ├── n_points │ ├── dim: 2 │ ├── noise │ │ ├── type-1: 0 │ │ └── type-2: 0 │ ├── plot_size: 312 │ ├── size: 312 │ ├── strong: 285 │ └── weak │ ├── all: 27 │ ├── failed to merge: 0 │ └── succeeded to merge: 27 └── validity └── train ├── ACC: 293 ├── AMI: 0.932 ├── ARI: 0.922 ├── F1: 0.967 ├── NMI: 0.932 ├── completeness: 0.873 └── homogeneity: 1.0

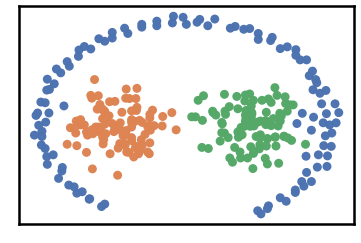

Dataset: pathbased Plotting dataset Groundtruth :::

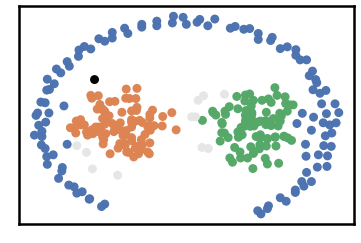

::: {.parsed-literal} Plotting train data :::


::: {.parsed-literal} Validating train data ├── exec_time │ ├── DenMune: 0.072 │ ├── NGT: 0.007 │ └── t_SNE: 0 ├── n_clusters │ ├── actual: 3 │ └── detected: 3 ├── n_points │ ├── dim: 2 │ ├── noise │ │ ├── type-1: 1 │ │ └── type-2: 11 │ ├── plot_size: 300 │ ├── size: 300 │ ├── strong: 198 │ └── weak │ ├── all: 102 │ ├── failed to merge: 11 │ └── succeeded to merge: 91 └── validity └── train ├── ACC: 286 ├── AMI: 0.889 ├── ARI: 0.924 ├── F1: 0.972 ├── NMI: 0.89 ├── completeness: 0.842 └── homogeneity: 0.943

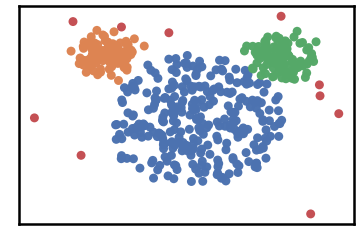

Dataset: mouse Plotting dataset Groundtruth :::

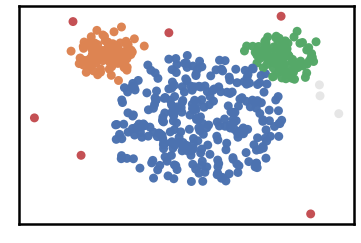

::: {.parsed-literal} Plotting train data :::


::: {.parsed-literal} Validating train data ├── exec_time │ ├── DenMune: 0.082 │ ├── NGT: 0.015 │ └── t_SNE: 0 ├── n_clusters │ ├── actual: 4 │ └── detected: 4 ├── n_points │ ├── dim: 2 │ ├── noise │ │ ├── type-1: 0 │ │ └── type-2: 3 │ ├── plot_size: 500 │ ├── size: 500 │ ├── strong: 302 │ └── weak │ ├── all: 198 │ ├── failed to merge: 3 │ └── succeeded to merge: 195 └── validity └── train ├── ACC: 492 ├── AMI: 0.949 ├── ARI: 0.972 ├── F1: 0.986 ├── NMI: 0.949 ├── completeness: 0.95 └── homogeneity: 0.948 :::
