MNIST Dataset

import pandas as pd
import numpy as np
import time
import os.path

import warnings
warnings.filterwarnings('ignore')

# install DenMune clustering algorithm using pip command from the offecial Python repository, PyPi
# from https://pypi.org/project/denmune/
!pip install denmune

# then import it
from denmune import DenMune

# clone datasets from our repository datasets
if not os.path.exists('datasets'):
  !git clone https://github.com/egy1st/datasets

::: {.parsed-literal} Cloning into \'datasets\'... remote: Enumerating objects: 52, done. remote: Counting objects: 100% (52/52), done. remote: Compressing objects: 100% (43/43), done. remote: Total 52 (delta 8), reused 49 (delta 8), pack-reused 0 Unpacking objects: 100% (52/52), done. :::

data_path = 'datasets/denmune/mnist/'
file_2d = data_path + 'mnist-2d.csv'

X_train = pd.read_csv(data_path + 'train.csv', sep=',')
X_test = pd.read_csv(data_path + 'test.csv',  sep=',')
y_train = X_train['label']
X_train = X_train.drop(['label'], axis=1)

dm = DenMune(train_data=X_train,
             train_truth=y_train,
             test_data=X_test,
             k_nearest=93,
             file_2d=file_2d,
             rgn_tsne=False)

labels, validity = dm.fit_predict(show_noise=True, show_analyzer=True)

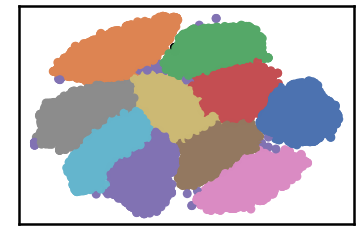

::: {.parsed-literal} Plotting dataset Groundtruth :::

::: {.parsed-literal} Plotting train data :::

::: {.parsed-literal} Validating train data ├── exec_time │ ├── DenMune: 340.29 │ ├── NGT: 15.154 │ └── t_SNE: 0 ├── n_clusters │ ├── actual: 10 │ └── detected: 10 ├── n_points │ ├── dim: 784 │ ├── noise │ │ ├── type-1: 2 │ │ └── type-2: 0 │ ├── plot_size: 42000 │ ├── size: 70000 │ ├── strong: 38267 │ └── weak │ ├── all: 31733 │ ├── failed to merge: 0 │ └── succeeded to merge: 31733 └── validity └── train ├── ACC: 40564 ├── AMI: 0.913 ├── ARI: 0.926 ├── F1: 0.966 ├── NMI: 0.913 ├── completeness: 0.913 └── homogeneity: 0.913

Plotting test data :::

# prepare our output to be submitted to the dataset kaggle competition
ImageID = np.arange(len(X_test))+1
Out = pd.DataFrame([ImageID,labels['test']]).T
Out.to_csv('submission.csv', header =  ['ImageId', 'Label' ], index = None)
